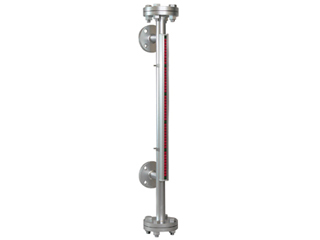

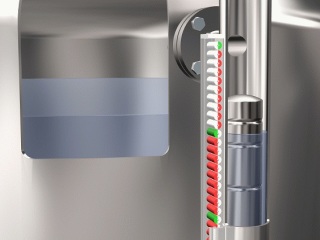

Constructed to effectively utilize the repulsion/attraction of magnets, this liquid level gauge shows the position of liquid on a scale by rotating a rotor using the magnetic force of a float inside the column. The gauge has a high degree of safety because glass is not used, and diverse design variations are possible thanks to the plentiful options available.

■ Features
・Safe design; gauge will not break or leak
・Color-coding on the indicator surface makes the gauge easier to
　read; not easily smudged
・An extremely light-weight liquid level gauge with a long visible range
・Ideal for tanks containing hazardous materials under the Fire Service Act
・Superior resistance to pressure, heat, corrosion, earthquakes and
　weather
・A wide range of variations means production is possible for diverse
　applications

This liquid level gauge utilizes hard glass with a small coefficient of thermal expansion giving it superior resistance to pressure, heat and corrosion.
High-tensile bolts give the gauge increased airtightness, and because the valve has a check ball, the gauge can be used for pressure vessels and other tanks.

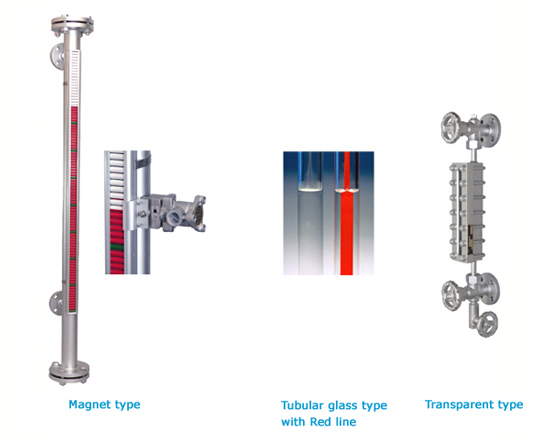

Reflex liquid level gauges
The gauge glass has five V-shaped grooves. The prism effect makes the gaseous phase look white, whereas in the liquid phase, the diffused reflection disappears making it look quite dark. This means that the liquid level can be seen clearly.

Transparent liquid level gauges
This gauge uses two layers of gauge glass, and is constructed so that users can see through to the opposite side. The gauge can be protected with mica or fluorine resin which prevents the alkaline corrosion of the glass. The gauge also uses a lighting system to make it easier for users to measure the liquid level, and its structure is more resistant to pressure than the reflex liquid level gauge.
